  • HC300 / HC301

Secret Fix T&G

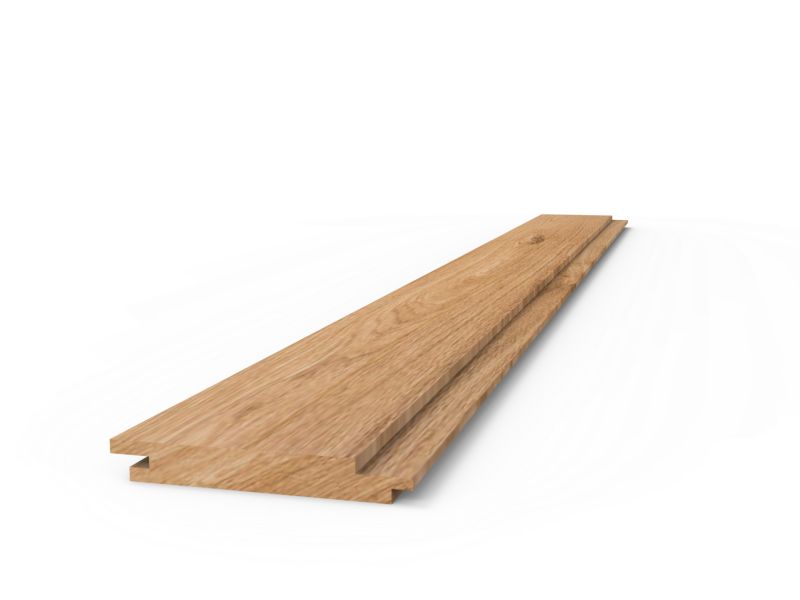

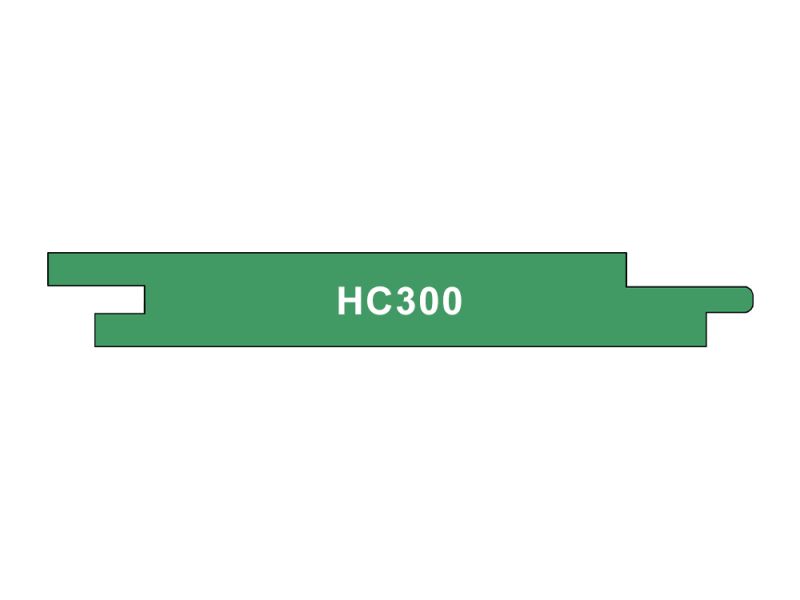

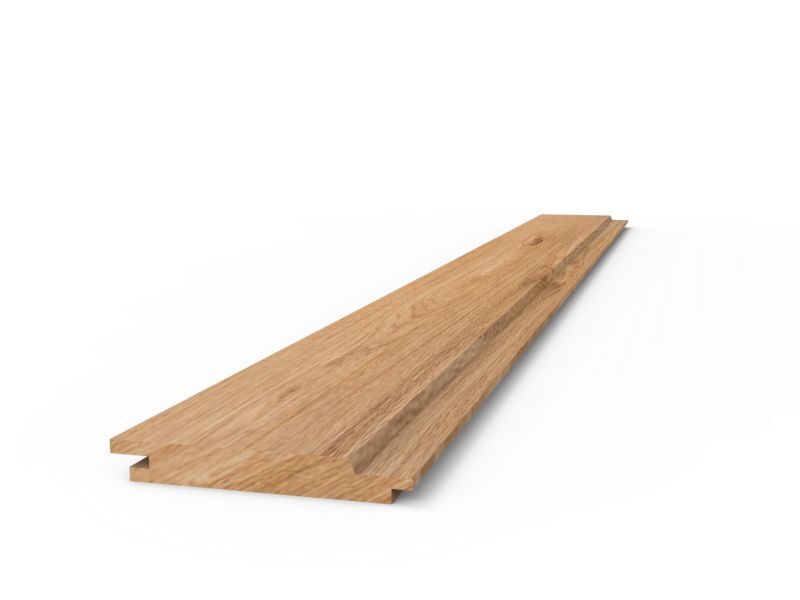

Features a T&G joint system with a unique, hidden fixing method. A profiled board with a groove cut into the back fits over a protruding tongue on the support batten, concealing the fixing, creating a clean and seamless finish. The hidden fixing method creates a clean, uniform appearance that is ideal for contemporary buildings or to update the look of a traditional building. Available with either a square detail (HC300) for vertical installation, or a splayed detail (HC301) for horizontal installation.

Send us your enquiry!

Call our friendly team on 01460 241777

or email us at sales@hewinsoak.com

Product Details

  • Orientation

    Horizontal | Vertical

  • Fixing Visability

    Invisable

  • Standard surface option

    PAR

  Overall width Thickness Face width*
Air Dried Oak - HC300 150mm 20mm 130mm
Air Dried Oak - HC301 150mm 20mm 130mm
Canadian WRC - HC300 144mm 18mm 124mm
Canadian WRC - HC301 144mm 18mm 124mm
Thermowood - HC300 142mm 18mm 122mm
Thermowood - HC301 142mm 18mm 122mm
Accoya - HC300 144mm 20mm 124mm
Accoya - HC301 144mm 20mm 124mm

*Face width does not allow for expansion gap
