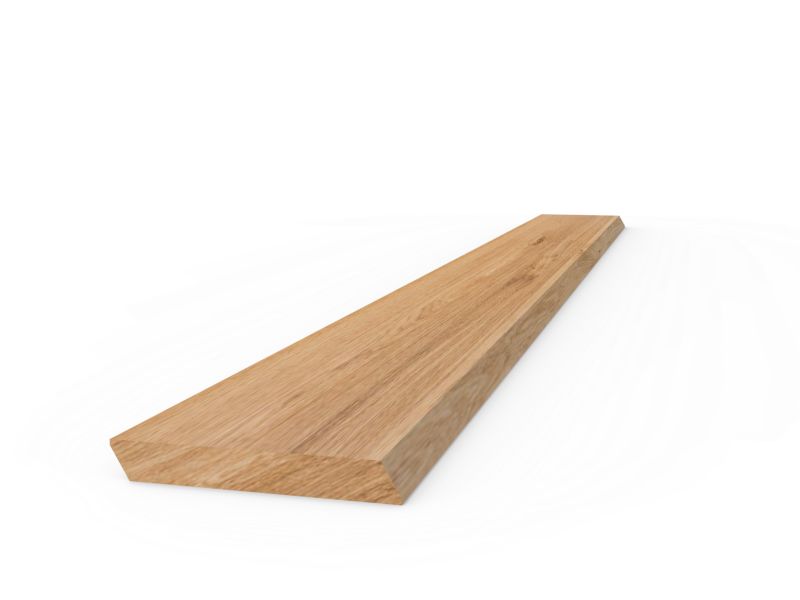

• HC600

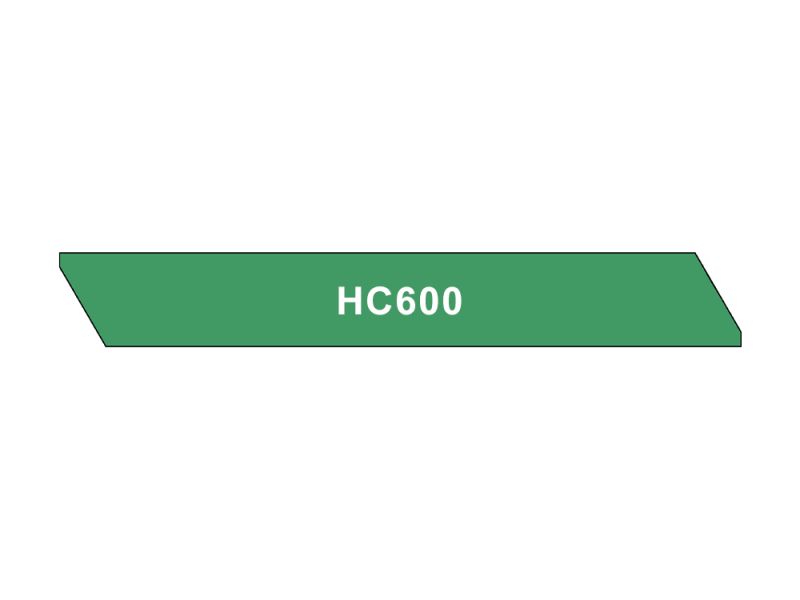

  • HC600_drawing
  • HC601

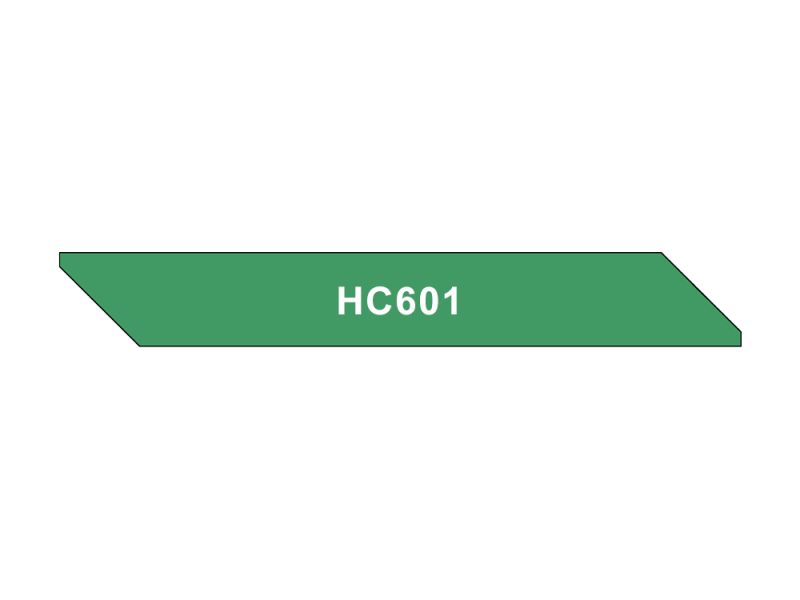

  • HC601_drawing
  • HC600 / HC601

Rainshield

Also known as Splayed cladding, Rainshield is a rhombus shape, installed with a 5-10mm decorative gap between the board. The boards sit adjacent to one another, without being interlocked or connected, allowing air to circulate the boards and therefore helping to prevent the build-up of mildew and mould behind the cladding. Essentially an outer ‘skin’ with a ventilated cavity, the cladding must only be installed in front of watertight surfaces. Available with either a 30 degree or 45 degree splay.

Send us your enquiry!

Call our friendly team on 01460 241777

or email us at sales@hewinsoak.com

Product Details

  • Orientation

    Horizontal

  • Fixing Visability

    Visable

  • Standard surface option

    Planed

  Overall width Thickness Face width*
Air Dried Oak - HC600 145mm 20mm 135mm
Air Dried Oak - HC601 145mm 20mm 128mm
British Larch - HC600 144mm 18mm 134mm
British Larch - HC601 144mm 18mm 127mm
Canadian WRC - HC600 144mm 18mm 134mm
Canadian WRC - HC601 144mm 18mm 127mm
British WRC - HC600 144mm 18mm 134mm
British WRC - HC601 144mm 18mm 127mm
Douglas Fir - HC600 144mm 18mm 134mm
Douglas Fir - HC601 144mm 18mm 127mm
Thermowood - HC600 142mm 18mm 132mm
Thermowood - HC601 142mm 18mm 125mm
Accoya - HC600 144mm 20mm 134mm
Accoya - HC601 144mm 20mm 127mm

*Face width does not allow for expansion gap
